A failing rear door can bring your deliveries to a halt and put drivers at serious risk. Box truck door spring repair is one of the most common—and most dangerous—maintenance issues for box trucks with roll-up doors. This guide explains how door springs work, warning signs of failure, repair options, costs, and how to decide between DIY and professional service.
What Is a Box Truck Door Spring?
The door spring is a counterbalance system that supports the heavy weight of a roll-up cargo door. Without it, the door would be nearly impossible to lift safely.
Read too: Franklin Truck Parts Near Me: Your Complete Guide to Local Truck Parts & Repair Solutions
Most box truck doors use:
- Torsion springs mounted above the door
- Cable and drum systems connected to the spring
- Tracks and rollers to guide movement
The spring stores mechanical energy when the door closes and releases it to help lift the door smoothly.
Why Box Truck Door Spring Repair Is Critical
A damaged or broken spring is more than an inconvenience—it’s a serious safety hazard.
Risks of Ignoring Spring Problems
- Door slamming shut unexpectedly
- Severe hand, arm, or head injuries
- Damaged cargo and door panels
- Failed DOT inspections
- Delivery delays and downtime
A broken spring can turn a routine delivery into a workplace accident.
Common Signs You Need Box Truck Door Spring Repair
Watch for these early warning signs.
Door Feels Heavier Than Normal
If lifting the door suddenly requires more force, the spring may be losing tension.
Door Won’t Stay Open
A properly balanced door should stay open on its own. If it drops, the spring is failing.
Loud Bang or Snap
A sudden loud noise often means the spring has broken completely.
Uneven Door Movement
Jerky or uneven motion can indicate partial spring failure or cable imbalance.
Visible Damage
Rust, cracks, or gaps in the spring are clear signs replacement is needed.
What Causes Box Truck Door Springs to Fail?
Springs are wear components with a limited lifespan.
Most Common Causes
- Normal wear and tear (thousands of open/close cycles)
- Corrosion from moisture
- Overloading the door
- Poor lubrication
- Improper installation
Commercial box trucks often open doors dozens of times per day, accelerating wear.
Box Truck Door Spring Repair vs Replacement
In most cases, replacement is safer than repair.
When Repair May Be Possible
- Minor tension adjustment
- Cable realignment
- Early-stage imbalance
When Replacement Is Required
- Broken spring
- Severe corrosion
- Loss of elasticity
- Uneven or damaged coils
👉 A damaged spring should never be welded or patched.

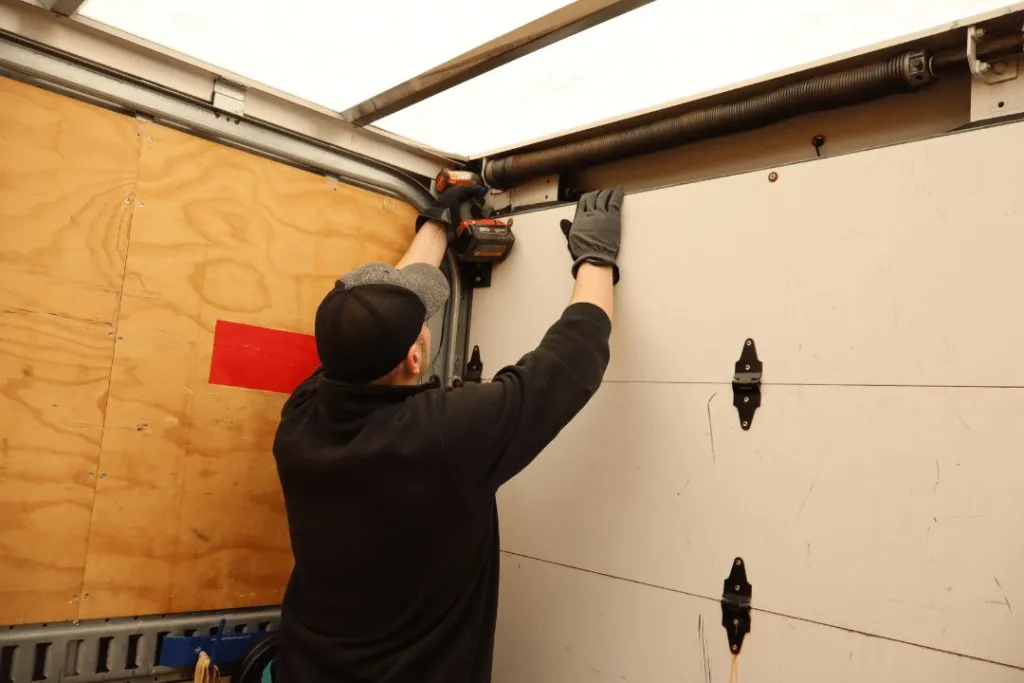

Step-by-Step: What Happens During Professional Spring Replacement
⚠️ Important: This process involves high-tension components and is not recommended for untrained DIYers.
Step 1: Secure the Door
- Door is fully lowered
- Locking bars or clamps prevent movement
Step 2: Release Tension Safely
- Controlled unwinding of remaining spring tension
- Specialized tools used
Step 3: Remove Old Spring
- Cables and drums disconnected
- Damaged spring removed
Step 4: Install New Spring
- Correct spring size and rating installed
- Drums and cables reset
Step 5: Balance & Test
- Door tested for smooth movement
- Tension fine-tuned
⏱️ Typical time: 1–2 hours
Can You Do Box Truck Door Spring Repair Yourself?
DIY: Proceed With Extreme Caution
Unlike residential garage doors, box truck door springs are heavier and under higher tension.
DIY Is Only Reasonable If:
- You have mechanical experience
- You understand torsion systems
- You have proper tools
- The issue is minor (adjustment only)
For full spring replacement, professional service is strongly recommended.
Cost of Box Truck Door Spring Repair
Costs vary by door size, spring type, and labor rates.
Typical Cost Breakdown
| Service | Estimated Cost |
|---|---|
| Spring adjustment | $150 – $300 |
| Single spring replacement | $300 – $600 |
| Dual spring replacement | $500 – $1,000 |
| Emergency service | +$100 – $300 |
💡 Fleet contracts often reduce per-repair costs.
Box Truck Door Spring Types Explained
Torsion Springs
- Mounted above the door
- Most common on box trucks
- Long-lasting and strong
Extension Springs (Less Common)
- Stretch as door opens
- Easier to install
- Shorter lifespan
Most modern box trucks use torsion spring systems for safety and durability.
Safety Rules for Door Spring Issues
If you suspect a spring problem:
- ❌ Do NOT force the door open
- ❌ Do NOT stand under the door
- ❌ Do NOT disconnect cables without training
- ✅ Secure the door immediately
- ✅ Tag the truck as unsafe
- ✅ Call a qualified repair service
According to general commercial vehicle safety principles, unsecured doors are a major injury risk. Background on commercial vehicle safety can be found on Wikipedia:
https://en.wikipedia.org/wiki/Commercial_vehicle
How Long Do Box Truck Door Springs Last?
Average lifespan:
- 3–7 years under commercial use
- Shorter with heavy daily operation
- Longer with proper lubrication and maintenance
Preventive replacement before failure is common in fleet operations.
Preventing Future Door Spring Problems
Simple Maintenance Tips
- Lubricate springs every 3–6 months
- Inspect cables and drums regularly
- Keep door tracks clean
- Avoid slamming the door
- Train drivers on proper operation
Preventive care can double spring lifespan.
Box Truck Door Spring Repair for Fleet Owners
Fleet managers should:
- Track door usage cycles
- Schedule inspections
- Replace springs proactively
- Keep spare trucks available
Downtime from a broken door often costs more than the repair itself.
Repair or Replace the Entire Door System?
Replacement may be smarter if:
- Door panels are warped
- Tracks are bent
- Multiple components are worn
- Repairs exceed door value
A full door replacement restores safety and reliability.
How Long Is a Truck Out of Service?
- Adjustment: Same day
- Spring replacement: 1–2 hours
- Full door replacement: 1 day
Quick turnaround minimizes delivery disruption.
FAQ – Box Truck Door Spring Repair (H2)
Is a broken door spring dangerous?
Yes. It can cause sudden door failure and serious injury.
Can I open a box truck door with a broken spring?
It’s possible but strongly discouraged due to safety risks.
How often should springs be replaced?
Every 3–7 years, depending on usage and maintenance.
Is spring repair covered by insurance?
Usually no—spring wear is considered maintenance.
Should both springs be replaced at once?
Yes. Replacing both ensures proper balance and longer lifespan.
Conclusion
Box truck door spring repair is not a job to delay or underestimate. Door springs carry heavy loads under extreme tension, and failure can cause serious injuries and downtime. Addressing issues early—and choosing professional repair when needed—keeps your truck safe, compliant, and productive.
