Introduction
If you’re in construction, mining, or hauling, you know that accurately measuring every load is critical. Overloading can damage equipment, cause safety issues, and lead to costly DOT fines. That’s why more operators are turning to On Board Scales for Dump Trucks — a smart solution that gives you real-time load weight data directly from your cab.
In this guide, you’ll learn exactly how on-board scales work, why they’re worth the investment, and how to choose the right system for your fleet in 2025.
What Are On Board Scales for Dump Trucks?
On Board Scales (OBS) are digital systems installed directly onto dump trucks to measure the weight of materials being loaded — without needing an external scale or weigh station.
Read too: Franklin Truck Parts Near Me: Your Complete Guide to Local Truck Parts & Repair Solutions
These systems use advanced hydraulic pressure sensors, air suspension sensors, or load cells to calculate the load weight in real time. The reading is then displayed on a digital monitor inside the cab or sent wirelessly to fleet management software.
How They Work (Step-by-Step):
- Sensors measure pressure or strain in the suspension or hydraulic system.
- The onboard processor converts this data into a weight reading.
- The monitor or app displays total and per-axle weight instantly.
- Optional connectivity sends data to fleet management software or the cloud.
This process allows drivers to monitor their loads on the go — ensuring compliance and preventing costly overloading mistakes.
Why Are On Board Scales Important for Dump Trucks?
Operating without accurate load data can lead to serious consequences. According to the Federal Motor Carrier Safety Administration (FMCSA), overweight violations can cost up to $10,000 per vehicle and significantly increase the risk of mechanical failure.
Here’s why on board scales matter:
- Safety: Prevents overloading that can cause tire blowouts or brake failures.
- Compliance: Helps stay within DOT weight limits.
- Efficiency: Eliminates repeated trips to weigh stations.
- Profitability: Optimizes each haul’s payload without exceeding limits.
- Accountability: Provides digital records for customers and fleet managers.
“Accurate onboard weighing isn’t just about compliance—it’s about protecting your equipment and maximizing uptime.” — Mark Johnson, Fleet Technology Expert, HaulTech North America.
Types of On Board Scales for Dump Trucks
There isn’t a one-size-fits-all system. Depending on your truck type, suspension setup, and budget, one technology may fit better than another.
| Type of Scale | Technology | Best For | Accuracy | Average Cost (USD) |
|---|---|---|---|---|
| Hydraulic Scales | Measures hydraulic pressure | Dump trucks with hydraulic hoists | ±1–2% | $2,000–$3,500 |
| Air Suspension Scales | Measures air bag pressure | Air-ride dump trucks | ±2–3% | $1,000–$2,000 |
| Load Cell Scales | Uses strain gauges on axles | Heavy-duty trucks, fleets | ±1% | $3,000–$5,000 |
| Digital Smart Scales | Wireless & app-based systems | Modern fleets with telematics | ±1% | $3,500–$6,000 |
Benefits of Using On Board Scales
Installing an onboard weighing system provides both short- and long-term advantages for any dump truck operation.
1. Save Time and Fuel
No more detours to truck scales — monitor load weights as you load.
This can save up to 30 minutes per trip, increasing daily productivity.
2. Avoid Overloading Fines
Real-time feedback ensures you never exceed the legal limit, protecting against fines and downtime.
3. Improve Fleet Efficiency
Fleet managers can analyze load data remotely, helping optimize dispatch and fuel usage.
4. Extend Equipment Lifespan
Proper weight distribution reduces wear on tires, brakes, and suspension systems.
5. Enhanced Record-Keeping
Digital logs can be automatically stored or exported — ideal for billing, compliance audits, or customer verification.
Top Features to Look for in On Board Scales
When comparing systems, look for the following must-have features:
- Digital Display: Large, backlit screen for easy viewing in any condition.
- Wireless Connectivity: Bluetooth or cellular link to apps or fleet software.
- Auto Calibration: Adjusts automatically as hydraulic pressure changes.
- Data Logging: Records weights, dates, and job locations.
- Weatherproof Design: Built for harsh job site environments.
Installation: Step-by-Step Overview
While installation complexity depends on truck type and scale system, here’s a simplified breakdown:
- Mount the Sensors – Attach to hydraulic lines, air bags, or axles.
- Run the Wiring – Connect sensors to the onboard display or control unit.
- Calibrate the System – Load a known weight (e.g., 10,000 lbs) to set the baseline.
- Test the Readings – Compare with a certified scale for accuracy.
- Integrate with Fleet Software (optional) – For remote monitoring and data export.
Most professional installations can be completed in 2–4 hours per truck.
Popular On Board Scale Brands (2025 Update)
Here are some of the most reliable brands trusted in North America:
| Brand | Best For | Key Features |
|---|---|---|
| LoadMan | Heavy-duty fleets | Cloud reporting, wireless integration |
| Vishay Precision Group | Industrial applications | High precision load cells |
| Air-Weigh | Air-suspension trucks | Real-time monitoring, Bluetooth connectivity |

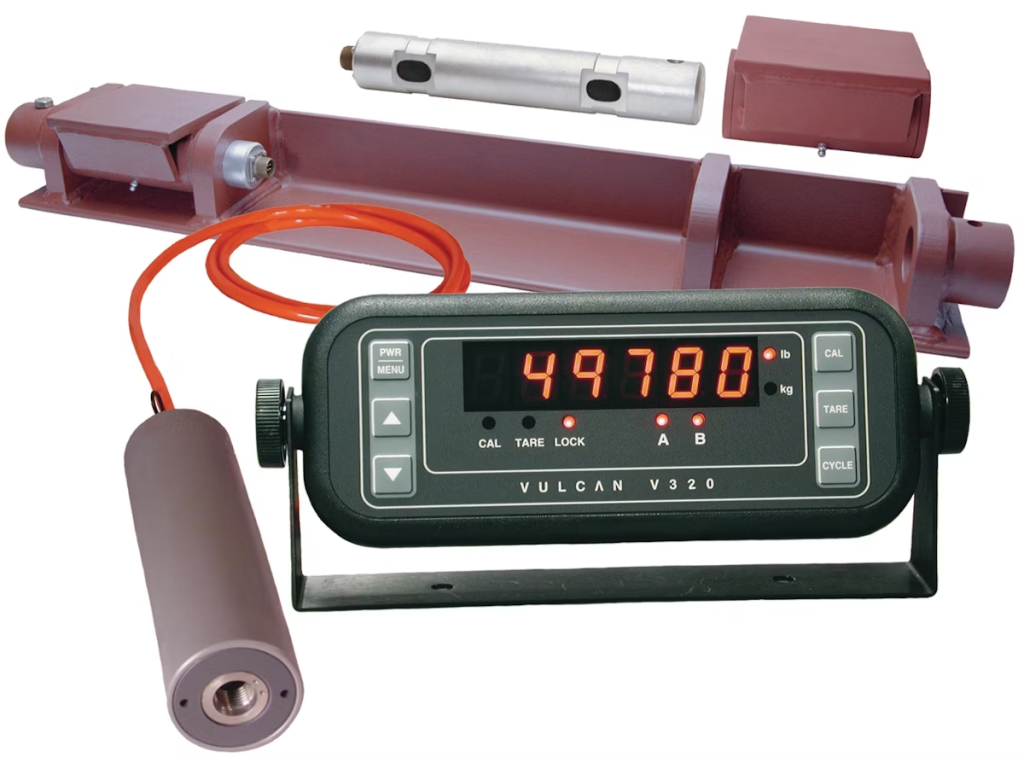

| Vulcan On-Board Scales | Dump and refuse trucks | Easy retrofit kits, durable sensors |
| TruckWeight | Mixed fleets | Portable wireless solutions |
Each brand offers models for different truck types, so choose one that matches your vehicle suspension system and fleet management platform.
Potential Drawbacks
No system is perfect. Before investing, consider these possible downsides:
| Cons | Details |
|---|---|
| Initial Cost | Higher upfront investment ($2,000–$5,000). |
| Calibration Required | Must be recalibrated periodically. |
| Environmental Impact | Extreme temperatures may affect sensor accuracy. |
| Maintenance | Occasional replacement of sensors or wiring. |
However, most fleets report ROI within 6–12 months thanks to fuel savings, time reduction, and fine avoidance.
Comparison: On Board vs Traditional Truck Scales
| Aspect | On Board Scales | Traditional Scales |
|---|---|---|
| Convenience | Measure anywhere | Requires weigh station |
| Cost Efficiency | One-time investment | Pay per use |
| Accuracy | ±1–2% | ±0.5% |
| Real-Time Data | Yes | No |
| Integration | Digital connectivity | Manual recording |
Verdict: For modern fleets, on-board systems are the smarter long-term solution.
FAQ: On Board Scales for Dump Trucks
1. How accurate are on board scales?
Most systems provide accuracy within 1–3% of actual weight when properly calibrated.
2. Can I install on board scales myself?
Some systems offer DIY installation, but professional setup ensures optimal calibration and warranty protection.
3. Are they legal for trade or billing?
Most are not certified for trade use, but they are ideal for internal load management and DOT compliance.
4. How often should I calibrate my on board scales?
Manufacturers recommend recalibration every 3–6 months or after major maintenance.
5. Do they work with all dump truck types?
Yes, most brands offer models for air-ride, spring, and mixed suspension systems.
6. Can I connect them to fleet management software?
Yes — leading systems like LoadMan and Air-Weigh integrate seamlessly via Bluetooth or cloud platforms.
Conclusion
Installing On Board Scales for Dump Trucks is one of the smartest upgrades a fleet can make in 2025.
They improve accuracy, safety, compliance, and efficiency — all while reducing operating costs.
By choosing the right system and maintaining regular calibration, your team can avoid fines, optimize loads, and boost profitability.
