If you work in traffic management or construction, you know how essential clear communication is — especially on busy highways. When Truck Mounted Variable Message Boards fail or you’re unsure which model to choose, delays and safety risks rapidly increase. This guide walks you through everything you need to know, from features to setup, so you can confidently pick the right board for your fleet.
What Are Truck Mounted Variable Message Boards?

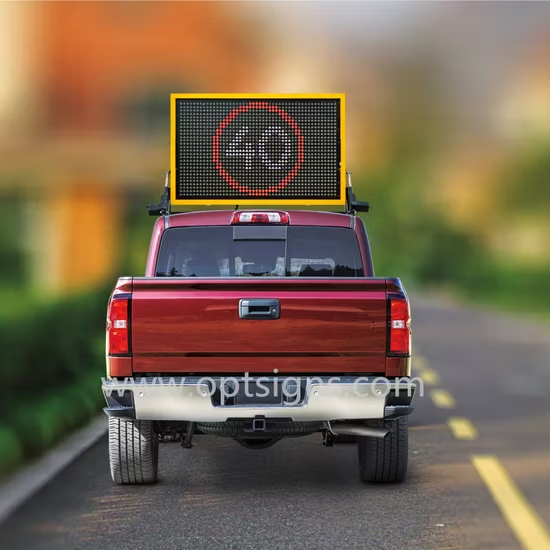

Truck Mounted Variable Message Boards (TMVMB) are LED message systems installed on service trucks used to warn, guide, and inform drivers in real time. Unlike stationary signs, they move with your operation, making them ideal for:
- Roadside maintenance
- Work zones
- Emergency lane closures
- Utility service operations
- Traffic redirection during special events
Read too: Top Trucking Companies That Still Have Manual Transmissions
According to the Federal Highway Administration (FHWA), portable and vehicle-mounted message signs significantly reduce crash risks by improving driver awareness in active work zones.
For a quick reference on variable-sign technology, see the general entry on dynamic message signs on Wikipedia.
Why Are Truck Mounted Variable Message Boards Important?
These systems enhance safety by providing high-visibility alerts to oncoming drivers. A 2024 work-zone safety study found:
- 82% of drivers respond faster to bright LED message boards
- 45% reduction in near-miss incidents when mobile message trucks are used
Benefits at a Glance
| Benefit | Description |
|---|---|
| Mobility | Move the sign anywhere your truck goes — no need for trailers. |
| Real-time updates | Change messages instantly from inside the cab. |
| High visibility | LED lights visible from ¼–½ mile away, even in sun. |
| Versatility | Display arrows, warnings, text messages, and more. |
| Safety | Protect crews by alerting drivers early. |
How Do Truck Mounted Variable Message Boards Work?
These systems typically include:
- LED Display Panel
High-intensity amber LEDs capable of static or dynamic messaging. - Control Unit
Inside the truck cab; operators can choose preset messages or create custom ones. - Hydraulic or Manual Lift System
Raises or lowers the board for operation or transport. - Power Source
Most use the truck’s electrical system; some include auxiliary batteries.
Step-by-Step: How Operators Use Them
- Park the truck according to work-zone safety rules.
- Engage hydraulic lift to raise the sign.
- Select message (“Merge Left,” “Lane Closed,” etc.).
- Set brightness for night/day conditions.
- Monitor traffic flow and adjust messaging as needed.
- Lower the sign before leaving the site.
Types of Truck Mounted Variable Message Boards
Understanding your options helps ensure you purchase the right system.
1. Full-Matrix Boards
- Display custom text, arrows, and symbols
- Best for dynamic traffic conditions
2. Arrow Boards
- Show directional arrows and caution signals
- Standard for lane closures and merging
3. Hybrid Multi-Function Boards
- Combine arrow functions with text capabilities
- Excellent for utility fleets and DOTs
Key Features to Look For in 2025 Models
When choosing a Truck Mounted Variable Message Board, consider these features:
Brightness & Visibility
Look for at least 5,000–7,500 nits LED brightness for daytime clarity.
Durability
Boards should meet NEMA TS 4 environmental standards, including resistance to:
- Heat
- Vibration
- Dust
- Rain
Wireless or Cab-Mounted Controls
Modern models offer touchscreen controls with:
- Message scheduling
- Custom message creation
- Diagnostics tools
Mount Compatibility
Ensure the board fits:
- Service trucks
- Pickup fleets (¾ ton or 1 ton)
- Utility trucks
- DOT vehicles
Power Efficiency
LEDs should be low-draw, enabling long runtime without straining the truck battery.
Use Cases: When to Deploy Truck Mounted Variable Message Boards
Road Construction Projects
TMVMBs alert drivers early, reducing sudden braking or lane-switching.
Pavement Marking & Striping
Specialty crews often operate in rolling work zones — moving message boards are ideal.
Emergency Response
Utility companies and city crews use them during outages or storm cleanup.
Traffic Redirection During Events
Parades, concerts, and sports events rely on message trucks for guiding traffic quickly.
Truck Mounted vs Trailer-Mounted Message Boards: A Comparison
| Feature | Truck Mounted | Trailer Mounted |
|---|---|---|
| Mobility | Excellent — moves with the truck | Moderate — must be towed |
| Setup Time | Very fast | Slower |
| Best For | Dynamic or mobile work zones | Long-term stationary projects |
| Cost | Slightly higher | Lower upfront |
| Space Required | No extra space | Requires storage & towing room |
Verdict:
If your work is constantly on the move, choose Truck Mounted Variable Message Boards. For long-term, single-location work zones, trailers may be more cost-effective.
How Much Do Truck Mounted Variable Message Boards Cost?
Price varies depending on size, features, and LED matrix type.
Typical Price Range (2025):
- Arrow boards: $3,500 – $6,000
- Full-matrix boards: $7,000 – $14,000
- Hybrid boards: $10,000 – $16,000
Additional costs may include:
- Mounting brackets
- Cab control modules ($350–$1,000)
- Hydraulic lift system upgrades
- Extended warranties
Maintenance Guide for Truck Mounted Message Boards (H2)
Proper maintenance ensures long lifespan and reliability.
Weekly Tasks
- Clean the LED panel with a soft damp cloth
- Check wiring for loose connections
- Verify hydraulic lift function
Monthly Tasks
- Test battery output
- Inspect LED segments for dark pixels
- Tighten mount bolts with torque wrench (80–120 ft-lb recommended)
Yearly Tasks
- Replace worn hydraulic seals
- Update software on the control unit
- Conduct full electrical load testing
Troubleshooting Common Issues
1. LEDs Not Lighting Up
- Check fuse panel
- Inspect wiring harness
- Confirm control system settings
2. Hydraulic Lift Won’t Raise
- Low hydraulic fluid
- Faulty pump relay
- Damaged lift arm
3. Message Will Not Update
- Controller malfunction
- Faulty connector cable
- Software error — restart system
Buying Guide: How to Choose the Right Model
Use this checklist when shopping for a new sign:
✔ Brightness level suitable for highway use
✔ Compatible mounting system
✔ Weatherproof rating (IP65+)
✔ Multiple message libraries
✔ Wireless remote or cab console
✔ Warranty coverage (3–5 years recommended)
If you frequently change locations, prioritize full-matrix models with easy-to-read fonts and quick hydraulic deployment.
Step-by-Step Installation Guide
Below is a general installation overview. (Always follow your manufacturer’s instructions.)
Tools Needed
- Torque wrench
- ¾” socket set
- Wire crimpers
- Power drill
- ¼” and ½” bolts
Installation Steps
1. Measure the Mounting Area
Ensure the back rack or truck body can support the board’s weight (usually 120–260 lbs).
2. Attach Mounting Frame
- Align brackets
- Tighten bolts to 80–120 ft-lb
3. Install Wiring Harness
- Connect power cable to truck battery
- Route wires through protective conduit
- Secure with zip ties every 12 inches
4. Attach LED Board to Frame
- Use the provided bolts
- Ensure stable movement when lifting
5. Connect the Control Unit
- Mount in cab
- Connect via main harness
6. Test System
- Raise and lower board
- Display several test messages
- Check brightness levels
FAQ Section
Q1: Are Truck Mounted Variable Message Boards legal on all U.S. highways?
A: Yes, they comply with MUTCD guidelines when used correctly. Always use approved messages and avoid unauthorized advertising.
Q2: How long does a typical LED message board last?
A: Quality boards last 7–12 years, depending on maintenance and exposure to extreme weather.
Q3: Can I operate the board while the truck is moving?
A: Yes, most models are designed for mobile operation, but messages must remain safe, simple, and not distracting.
Q4: What power source do these boards require?
A: Most use the truck’s 12V system, though some include auxiliary batteries for backup.
Q5: Can message boards display graphics or symbols?
A: Full-matrix models can show arrows, lane indicators, and custom shapes.
Q6: How often should I service the hydraulic lift?
A: Every 12 months or every 1,000 operating hours, whichever comes first.
Conclusion
Truck Mounted Variable Message Boards are one of the most effective tools for improving safety, efficiency, and communication on U.S. roadways. Whether you’re managing a construction zone, emergency operation, or day-to-day utility work, these boards keep workers safe and traffic moving smoothly.
If you found this guide helpful, share it on your social media so others in your industry can benefit too!
